XD-250

Your current location: Home >> Products >> Single stage multi-disc vacuum pump

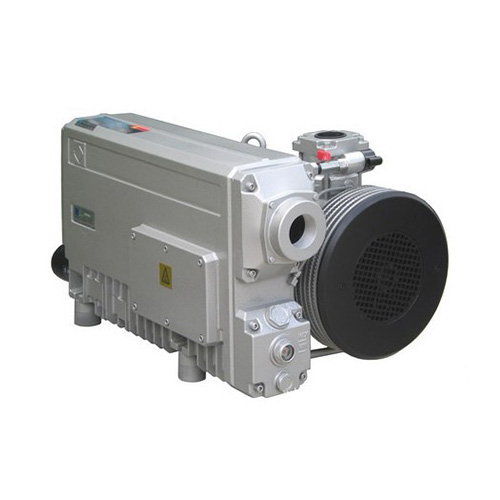

XD-250

  • Classification:Single stage multi-disc vacuum pump

  • Click:
  • Date:2017/04/28
  • Inquiry
Detailed

A product overview:

The XD series vacuum pump for single-stage rotary vane vacuum pump, simple structure, easy operation, easy maintenance, is a kind of basic equipment, using a wide range of for vacuum. It works the same as the general positive displacement pump, is in a one of the shaft installed in the pump body in the eccentric position of the rotor, the rotor has three radial sliding vane, the pump cavity is divided into three workshops, is pumped gas from the suction mouth entering, by opening the non-return valve and the filter into the pump chamber, when the rotor rotates, finish inhaling studio itself from the air inlet and gas compression, and through the access between the pump chamber and exhaust gas discharge. Rotate for a week and repeat three times.



Applications:

XD type rotary vane vacuum of vacuum pump is suitable for various industrial applications, such as: vacuum packaging of all kinds of food from food manufacturing, textile industry on the various soft items of vacuum compression packing; Vacuum drying, distillation, and enrichment of chemical industry; Vacuum impregnation of various kinds of casting; Vacuum fixture on machine processing; Vacuum handling in transportation operations; The vacuum in the operating room of the hospital; Rubber and plastics industry to absorb plastic molding; Vacuum dynamic test, etc.

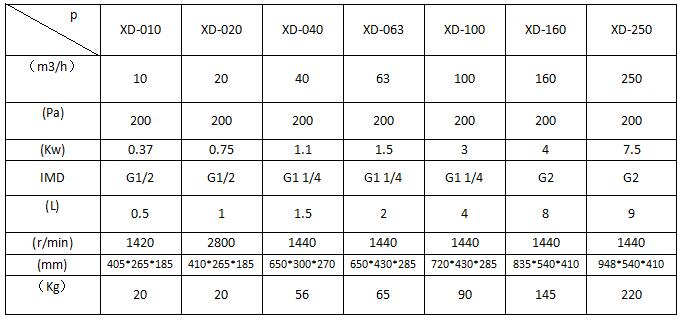

Technical parameters


Tag:Oil-freediaphragmvacuumpump
