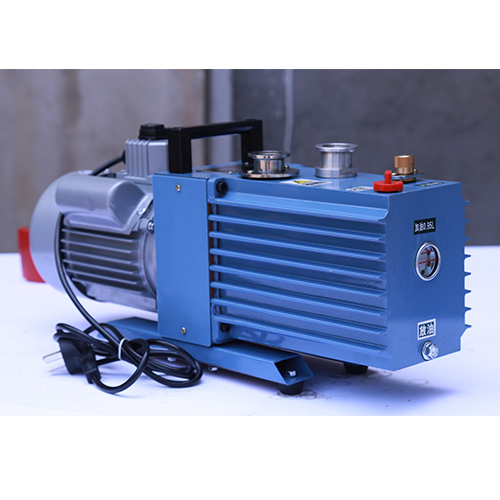

2XZ-4 direct coupled rotary vane vacuum pump

The pump is a basic device for the extraction of gas from a sealed container. It can be used alone, can also be used for booster pump, diffusion pumps, molecular pump, pump, pre titanium pump pumping pumps, can be used for vacuum drying, freeze drying, vacuum degassing, vacuum packaging, vacuum adsorption, vacuum forming, coating, packaging, printing, sputtering, vacuum casting instruments, facilities, refrigerator, air conditioning pipeline and laboratory vacuum operation and supporting the use of.

一、Characteristic

1, due to the low noise design and precision processing, thus achieving a low noise;

2, the preparation of special design of gas valve, prevent water pump oil, pump oil extended the use of time;

3, the use of similar international product design, small size, light weight, low noise, easy to start;

4, equipped with automatic double anti oil return device, never return oil;

5, small diameter 2XZ-4 vacuum pump with vacuum drying box, freeze drying machine, printing machinery;

6, can be equipped with small diameter adapter, KF interface, flange interface.

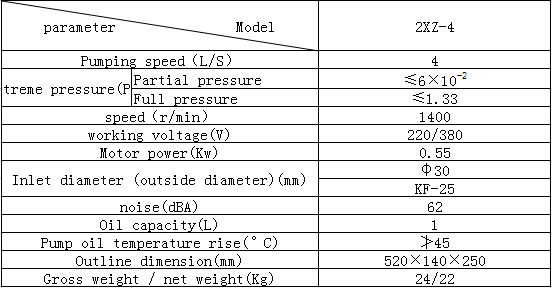

二、technical parameter

三、Pumping rate curve

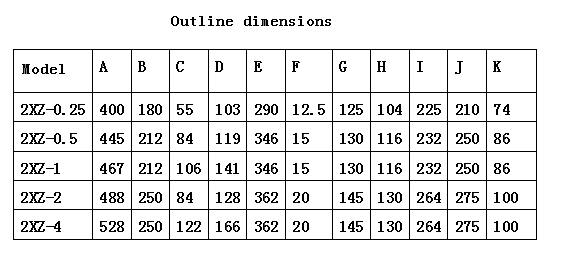

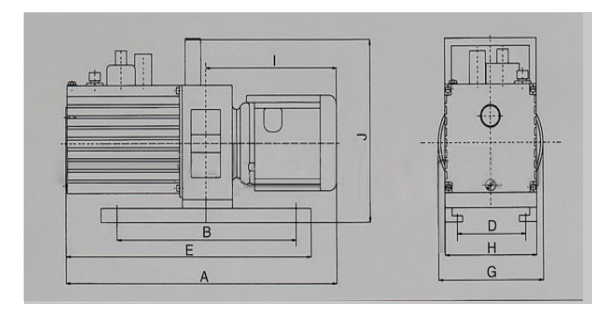

四、Mounting dimensions
